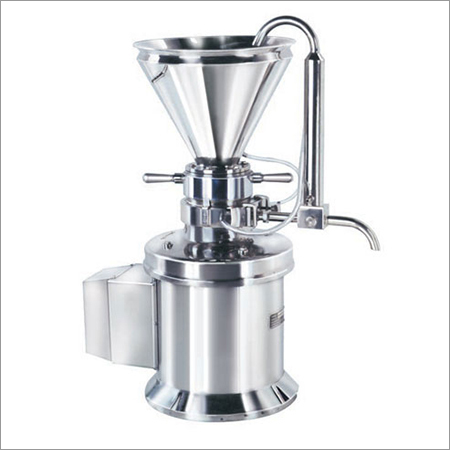

Colloid Mill

Colloid Mill
Colloid Mill
Product Code : NET 03
Brand Name : NEEL EQUIPMENT TECHNOLOGY
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Unit Per Day
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2008
Product Description

Colloid Mill

We at Neel Pharma Equipment Colloid Mill Product fed into the operating area by means of specially designed feeding device is subjected to high shearing, cutting and rubbing forces between stator and rotor. Due to conical arrangement and the centrifugal effect of the rotor rotating at a high speed (2800 RPM), the material is forced in to the next tooth stage. The tooth vibrations which subject the particles with high degree of forces. Intense whirling multiples the grinding and mixing effect. Due to the slightly deviating tapering of the milling surface of the stator and rotor, the angular gap becomes narrower towards the discharge section. The processed material continuously leave the mill through the drain pipe, if required it can be re-circulated.

Model Available :

  • Standard Model : Plain/Water Jacketed

Special Features :

  • made out of SS304 / SS316 / SS316 L quality material.
  • Coupling provided between motor shaft and rotor for the ease in maintenance.
  • Special sealing arrangement between the motor and the processing chamber to prevent liquid going in side the motor winding, resulting in the burning of the motor.
  • Modified design of semi concave teeth in rotor & stator gives better performance in size reduction without damaging the product.
  • 3 way cock system for draining and re-circulation of liquids & discharge spout for viscous products provided as a standard.
  • DOL starter with overload relay for protection against single phasing and low voltage.
  • Contact parts can be easily dismantled for cleaning.
  • Flame proof construction provided on demand. (On extra cost )
