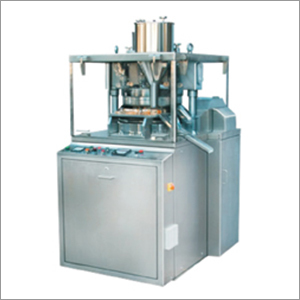

Double Rotary Tablet Press

Double Rotary Tablet Press
Double Rotary Tablet Press
Product Code : NET 10
Brand Name : NEEL EQUIPMENT TECHNOLOGY
Price And Quantity
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Unit Per Day
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2008
Product Description

Double Rotary Tablet Press

Features of Double Rotary Tablet Press - 27D or 27B, 35B, 45BB Tooling Stations :

  • Provided with double sided lifting cams. Extra hand wheel is provided for easy loading of punch die sets.
  • Square GMP model double rotary tablet press. Operator friendly design, provided with electronic digital tablet cum RPM counter. Reverse direction motion protection is also provided for safety purpose.
  • CI body and turret of special grade iron casting with CI middle plate, imported needle roller, bearing provided at the bottom of turret. Also available with middle plate of turret made of 316 grade stainless steel.
  • There is not any painted parts in tablet manufacturing zone as all parts are made of stainless steel 304 or gunmetal or of hard chrome plated. All hardware used in the machine has stainless steel 304 quality in tablet manufacturing zone.
  • It is provided with disk type friction clutch start system.
  • Upper punch penetration system, variable speed pulley, one shot lubrication system & anti vibrating mount.
  • Lower guard of polished stainless steel and upper guards of acrylic material. Turret guards have sturdy aluminum frame. All guards are interlocked for safety.
  • Effective dust extraction nozzles.
  • Options are available for customization like (1) Force Feeding Attachment (2) Two Layer / Bilayer Tablet Attachment (3) Poly Carbonate Upper Guards (4) Auto Lubrication Pump (5) The machine is available with AC variable Drive & Electromagnetic Clutch.

Technical Specifications of Double Rotary Tablet Press - 27D or 27B, 35B, 45BB Tooling Stations:

Model

27 - D

27 - B

35 -B

 45 -BB

No. of Stations

27

27

35

45

Type of Tooling

D

B

B

BB

Output Tablets/Hr.(Min./Max.)

54,000 to 1,29,000

54,000 to 1,29,000

70,000 to 1,68,000

90,000 to 2,16,000

Max. Operating Pressure (Tons)

10

6.5

6.5

6.5

Max. Tablet Diameter (mm)

25

16

16

16

Max. Depth of Fill (mm)

20

17.5

17.5

17.5

Upper Punch Penetration (mm)

1.5 - 8

1.5 - 8

1.5 - 8

1.5 - 8

Turret RPM

17/40

17/40

17/40

17/40

Main Electric Motor

Crompton Make, 5 HP, 3 Phase, 1440 RPM, 415 V., 50 Hz.

Double Rotary Tablet Press Dimension L x W x H (mm) (Approx)

1790 x 1000 x 1040

Net Weight (kgs) (Approx)

1143

Packing Dimension (mm)


Gross Weight (kgs) (Approx)
