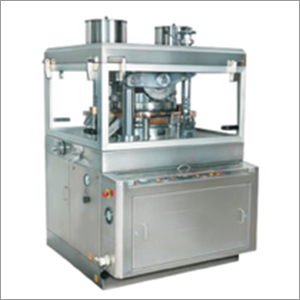

High Speed Rotary Tablet Press

High Speed Rotary Tablet Press
High Speed Rotary Tablet Press
Product Code : NET 06
Brand Name : NEEL EQUIPMENT TECHNOLOGY
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Unit
  • Delivery Time
  • Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • ISO 9001 : 2008
Product Description

Features of High Speed Rotary Tablet Press:

  • It is High Speed Rotary Tablet Press suitable for large batch production having capacity of higher table output with full consideration to GMP standards and available toolings are D B BB Punch Die Sets.
  • Square & elegant design with cabinet top of stainless steel 304. The design is operator friendly and comfortable to the operator while the production.
  • Having facility for fine tuning all parameters during operation of the machine with the help of outside front controls with dials.
  • For the ease of operation, the press is equipped with round hoppers of SS-304 with butterfly valve.
  • A. C. variable frequency drive for the main motor as well as A. C. variable frequency drive for force feeding motors, which enables operator to synchronize speed of press with feeding.
  • Electromagnetic clutch arrangements with helical gear ring to drive the turret.
  • Specially designed pressure link assembly, which ensures sufficient & equal pressure to the tablets for maintaining tablet weight consistency.
  • Hydraulic [ower pack for pressure loading and overload release. A hydraulic gauge is also provided on lower guard for easy view.
  • Standard press has one piece turret of special grade casting. However 3 piece turret with SS- 304 / 316 middle plate is also available (optionally). Electro less nickel plated turret can also provided (optionally).
  • Lower punch seals are provided at lower punch hole in turret.
  • Ball bearing type upper & lower pressure rolls. Upper rolls carries are MS fabricated with hard chrome plating.
  • Upper guards for the tableting section are made of poly carbonate with stainless hinges & sturdy with aluminum frame & fitted with gas filled shock absorbers. The lower guards of the press are of stainless 304 with excellent matt finish. All guards are interlocked for safety.
  • There is not any painted parts in tablet manufacturing zone as all parts are made of SS-304 material or Gunmetal or of hard chrome plated. All hardware used in the press are having SS-304 quality in tablet manufacturing zone.

Technical Specifications of High Speed Rotary Tablet Press :

Model

37 - D

 45 - B

55 -BB

 61 -BB

No. of Stations

37

45

55

61

Type of Tooling

D

B

BB

BB

Output Tablets/Hr. (Min./Max.)

75,000 to 2,00,000

90,000 to 3,00,000

1,00,000 to 3,00,000

1,15,000 to 4,00,000

Max. Operating Pressure (Tons)

10

6.5

6.5

6.5

Max. Tablet Diameter (mm)

20.5

17.5

17.5

17.5

Max. Depth of Fill (mm)

25

15.9

11.1

11.1

Upper Punch Penetration

1/8" - 5/16"

Power

9.5 HP

Power (Main Electric Motor)

5.5 KW / 7.5 HP 1440 RPM, 415 V. 50 Hz, 3 Ph.

Power (Feeder Motors) (2 nos.)

0.19 KW / 0.25 HP, 1440 RPM, 415 V, 50 Hz, 3 Ph.

Dimension of High Speed Tablet Press L x W x H (mm) (Approx)

1742 x 1430 x 1485

Net Weight (kgs) (Approx)

2500

Note: We reserve right to change specifications without any prior notice.
