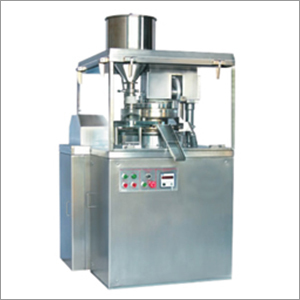

Single Rotary Tablet Machine

Single Rotary Tablet Machine
Single Rotary Tablet Machine
Product Code : NET 15
Brand Name : NEEL EQUIPMENT TECHNOLOGY
Price And Quantity
  • Unit of Measure
  • Unit/Units
Product Description

Features of Single Rotary Tablet Press with 16 20 23 Stations :Provided square GMP model Single Rotary Tablet Press. Operator friendly design, provided with electronic digital tablet cum RPM counter. Reverse direction motion protection is also provided for safety purpose.

    • body Cast iron and turret of special grade iron casting with CI middle plate, imported needle roller, bearing is provided at the bottom of turret.
    • There is not any painted parts in tablet manufacturing zone as all parts are made of stainless steel 304 or gunmetal or of hard chrome plated.
    • Upper punch penetration system, variable speed pulley, one shot lubrication system & anti vibrating mount.
    • Lower guard of polished stainless steel and upper guards of acrylic material. Turret guards has sturdy aluminum frame. All guards are interlocked for safety.
    • Provided with double sided lifting cams. Extra hand wheel is provided for easy loading of punch die sets.
    • Effective Dust Extraction Nozzles.

    Options are available for customization like

    (1) Force Feeding Attachment

    (2) A. C. Variable Drive & Electromagnetic Clutch

    (3) Poly Carbonate Upper Guards

    (4) Auto Lubrication Pump.

Technical Specifications of Single Rotary Tablet Press with 16 20 23 Stations :

Model

16 - D

20 - D

23 - DB

No. of Stations

16

20

23

Type of Tooling

D

D

DB

Output-Tablets/Hr.(Min./Max.)

4,320 to 13,440

16,800 to 50,400

19,320 to 57,950

Max. Operating Pressure (Tons)

10

10

10

Max. Tablet Diameter (mm)

25

25

16

Max. Depth of Fill (mm)

20.5

20.5

18.5

Upper Punch Penetration (mm)

1.5 - 8

1.5 - 8

1.5 - 8

Main Electric Motor

3 HP / 2.2 Kw 1440 RPM, 415 V., 3 Phase, 50 Hz

Single Rotary Tablet Press Dimension L x W x H (mm) (Approx)

980 x 1020 x 1820

Net Weight (kgs) (Approx)

1000

Packing Dimension


Gross Weight


Note : We reserve right to change specifications without any prior notice.

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Unit
  • Delivery Time
  • Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • ISO 9001 : 2008
