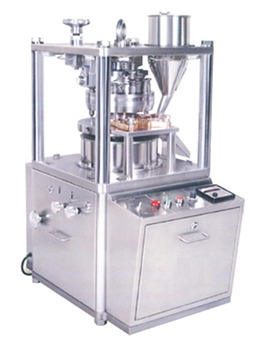

Single Rotary Tablet Press

Single Rotary Tablet Press
Single Rotary Tablet Press
Product Code : NET 11
Brand Name : NEEL EQUIPMENT TECHNOLOGY
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Unit
  • Delivery Time
  • Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden boxes.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • ISO 9001 : 2008
Product Description

We are a prominent manufacturer, and supplier of Single Rotary Tablet Press for our profoundly regarded customers. Our reach incorporates Single Rotary Tablet Press and Double Rotary Tablet Press. It is made utilizing premium quality crude material and most recent innovation and apparatus at our unit under the expert direction and supervision as indicated by the predominant worldwide gauges. This has lead to profoundly expanding requests in the business sector. Our Tablet Press - Mini - Single Rotary is generally refreshing and requested for simple operations and maintenance.

Features:

  • Rough plan
  • Non destructive surface
  • Vibration less working
  • Needs less maintenance

The Tablet Press, Mini in size and Single Rotary is an ideal choice for R&D work as well as small scale productions. It is also used to avoid wastage when high value ingredients are used for tablet formulations, also known as lab tablet press. The mini tablet press is designed with GMP considerations. It is sturdy, fitted with single sided turret of special grade Iron Casting.

Features of the Tablet Press :

  • Pre compression facility as a standard feature
  • A. C. variable drive and fixed pulley. It is driven from central pillar by worm reduction gear box.
  • Lower guards of stainless steel & upper guards of transparent acrylic to view tablet compression process of the machine comfortably.
  • Electronic Tablet Counting System
  • Granules are fed through an open feed frame which ensures trouble free settings and minimum wastage of valuable material.
  • Force feeding attachment is optional accessories for difficult, fluffy & fine granule compression.
  • Table top, Mobile & easy to clean
  • For easy operation outside controls are given for Pre Compression adjustment, tablet thickness adjustment and turret speed adjustment.

Optional Parts/ Accessories available with the Tablet Press :

  • Force Feeder
  • SS 316 Contact Parts
  • Nickel Plating on Turret
  • Poly carbonate Upper Cabinet Guard
  • Hopper Granule Level Sensor
  • Force Feeder Attachment
  • Stand with Drawer (SS 304)

Technical Specifications of Tablet Press :

Model

TPC - 10 - B

TPC - 10 - D

TPC - 8 - D

Version

GMP

GMP

GMP

Rotary

Single

Single

Single

Tooling

B

D

D

No. of Station

10

10

8

Output (Tab/hr)

17000

17000

14000

Pressure (Ton)

6

6

6

Max. Tablet Diameter (mm)

16

22

22

Max. Depth of Fill (mm)

17.5

20.5

20.5

Power

2 HP, 3 Phase, 1440 RPM, 415 V, 50 Hz

Turret RPM ( Min./ Max.)

10 - 30

Tablet Press Dimension (mm)

400 x 360 x 650

Net Weight (kgs)

400

Packing Dimension (mm)

480 x 670 x 1050

Gross Weight (kgs)

600

Note: We reserve right to change specifications without any prior notice.
